The rectifier is an electronic component that converts alternating current (AC) to direct current (DC). Its working principle is based on the unidirectional conductivity of the diode, that is, the current is only allowed to pass in one direction.
The rectifier is a rectifier device that simply converts alternating current (AC) into direct current (DC). It has two main functions: first, convert alternating current (AC) into direct current (DC), feed the load after filtering, or supply the inverter; Second, provide charging voltage to the battery. Therefore, it also acts as a charger.
The rectifier is also called High frequency power supply, it is used in all walks of life for the hot processing of metal materials, heat treatment, hot assembly and welding, melting and other processes of equipment

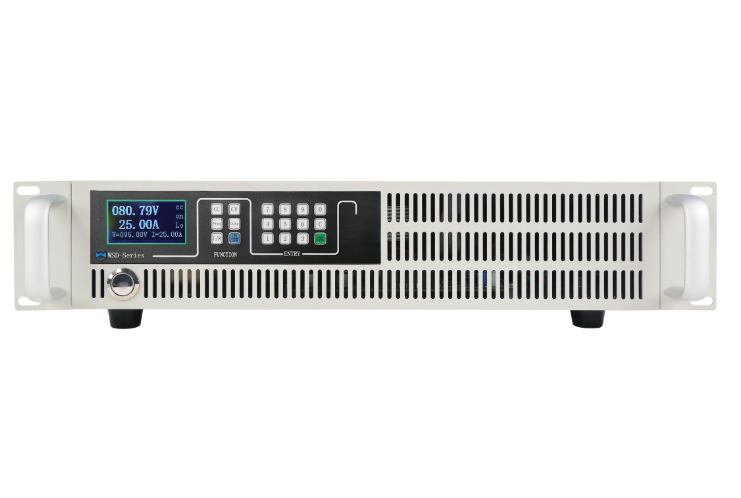

The Features of our Programmable DC power supply Rectificer
1. The LCD screen displays information, allowing for the setting of peak voltage, average current, frequency, and duty cycle.
Rated peak voltage: 0 - 1000V; Rated average current: 0 - 100A
Voltage is displayed in 5 digits, while current is displayed in 4 digits.
Output frequency range: 1Hz - 100KHz; Duty cycle: 1% - 99%
With a resolution of up to 1mV and 1mA, the power supply output is more accurate.
High display accuracy and high programming accuracy. The rising edge is less than 500ns.
Standard interface: RS485, Optional interface: RS232
Parameters：

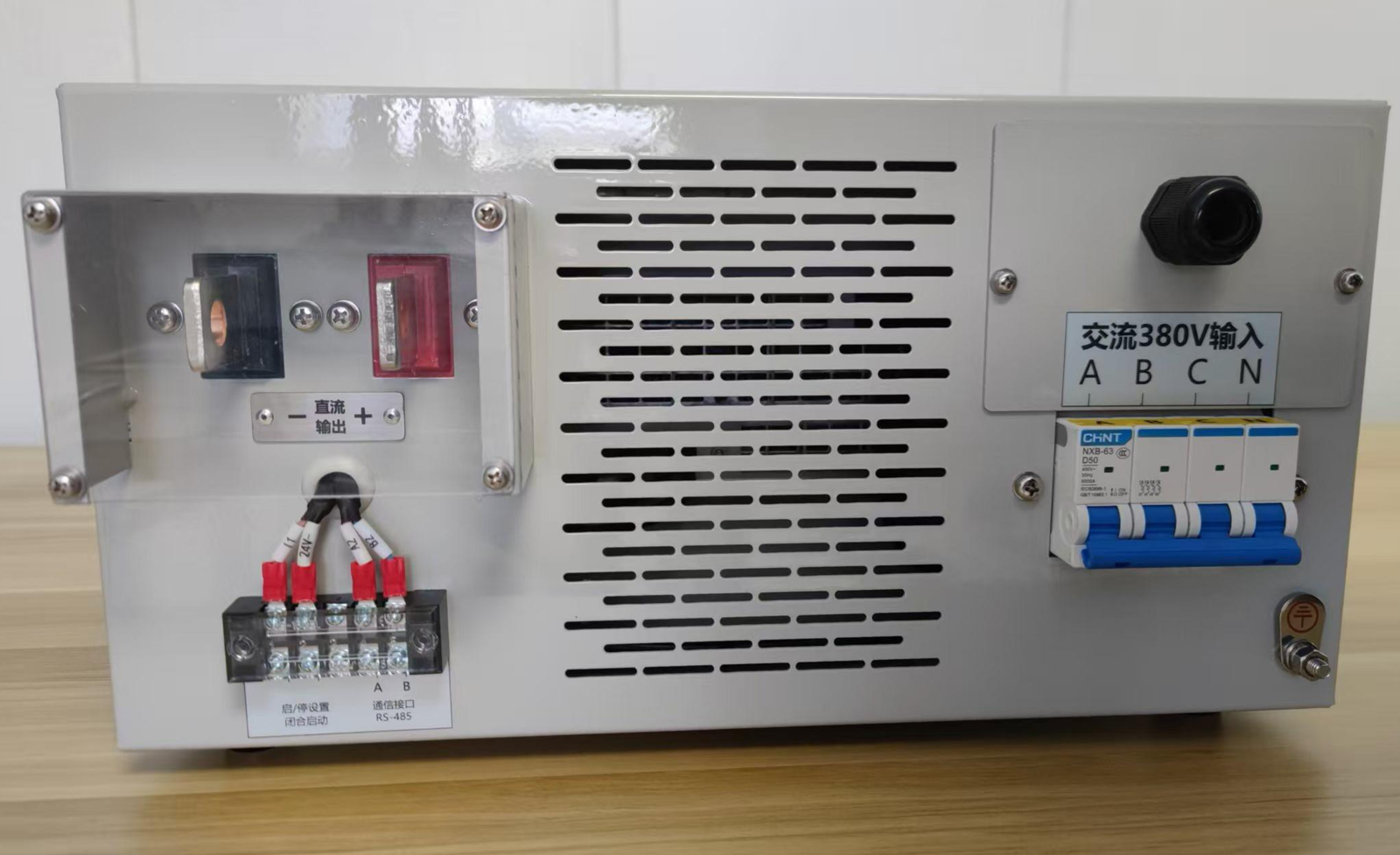

| AC: Supply | |
| Voltage | Single-phase 220VAC±10%(≤3KW);Three-phase 380VAC±10%(>3KW) |
| FREQUENCY | 50-60Hz |
| Power Factor | >0.92 |
| Voltage | |
| Range | 0-1000Vpp |
| Accuracy | <Rated value 0. 5% |
| Load regulation 0-100% | <Rated value 0. 1% |
| Line regulation ±10% ∆UAC | <Rated value 0. 1% |
| Current | |
| Range | 0-100Arms |
| Accuracy | <Rated value 1% |
| Load regulation 1-100% | <Rated value 0. 1% |
| Line regulation ±10%∆UAC | <Rated value 0. 1% |
| Power | |
| Range | 0-10KW |
| Accuracy | <Rated value 0. 5% |
| Frequence | |
| Range | 1Hz-100KHz |
| Accuracy | <Rated value 0.2% |
| Duty Cycle | |
| Range | 1%-99% |
| Accuracy | <Rated value 0.5%(20KHz 以内) |
| Protection | Output voltage limit protection, output current limit protection, output power limit protection, temperature protection |
